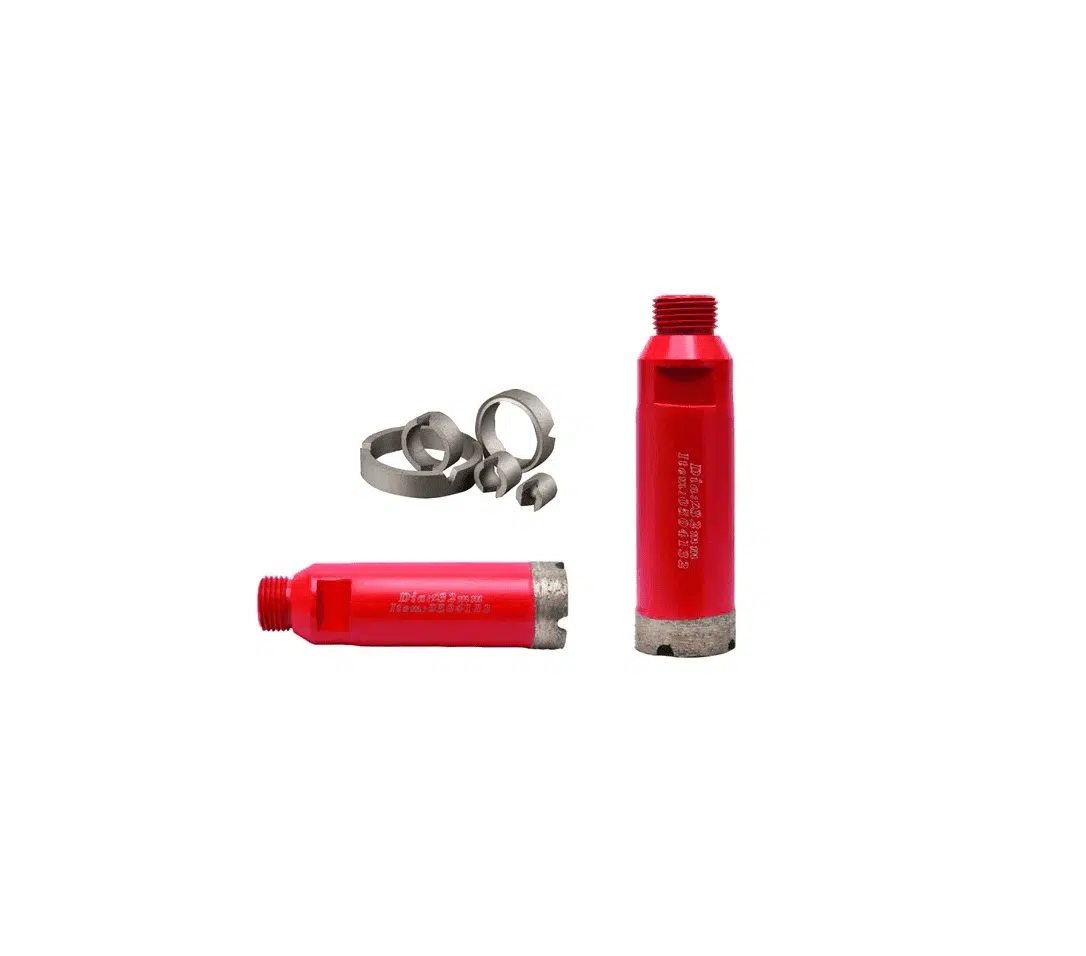

Diamond drill bit for angle grinder/drill

Diamond drill bit for angle grinder/drill

M14 Internal thread	BSP External thread	ZD	Drilling length	Overall length	Drilling diameter Inch	Drilling diameter MM	SKU
A	1/2“	2.0	65	110	5/16”	8	0504108
A	1/2“	2.0	65	110	25/64”	10	0504110
A	1/2“	2.0	65	110	15/32”	12	0504112
A	1/2“	2.0/2.5	65	110	35/64”	14	0504114
A	1/2“	2.0/2.5	65	110	19/32”	15	0504115
A	1/2“	2.0/2.5	65	110	5/8”	16	0504116
A	1/2“	2.0/2.5	65	110	45/64”	18	0504118
A	1/2“	2.0/2.5	65	110	25/32”	20	0504120
A	1/2“	2.0/2.5	65	110	55/64”	22	0504122
A	1/2“	2.0/2.5	65	110	63/64”	25	0504125
A	1/2“	2.0/2.5	65	110	1 7/64”	28	0504128
A	1/2“	2.0/2.5	65	110	1 3/16”	30	0504130
A	1/2“	2.0/2.5	65	110	1 17/64”	32	0504132
A	1/2“	2.0/3.0	65	110	1 3/8”	35	0504135
A	1/2“	2.0/3.0	65	110	1 1/2”	38	0504138
A	1/2“	2.0/3.5	65	110	1 21/32”	42	0504142
A	1/2“	2.0/3.5	65	110	1 49/64”	45	0504145
A	1/2“	2.0/3.5	65	110	2 3/64”	52	0504152
A	1/2“	2.0/3.5	65	110	2 33/64”	64	0504164
A	1/2“	2.0/3.5	65	110	2 65/110”	102	0504165

Diamond drill bit for angle grinder/drill Diamond glasses will be repaired under warranty only under the following conditions: Three-piece BSP cup drills: – One tooth falling out and the segment height is over 50% – crown replacement without charge. In all other cases, no liability will apply. Speed drills – cold (dry and fast drilling): – Broken tooth and the cup segment remains at the initial height – replacement. – Broken tooth and the glass segment has dropped to half its initial height – replacement at a cost of 50% of the product value. – Broken tooth and the cup segment has dropped below 50% of its initial height – no warranty. In the following cases, no liability will apply: – Breaking a piece of the tooth – Drilling iron directly
